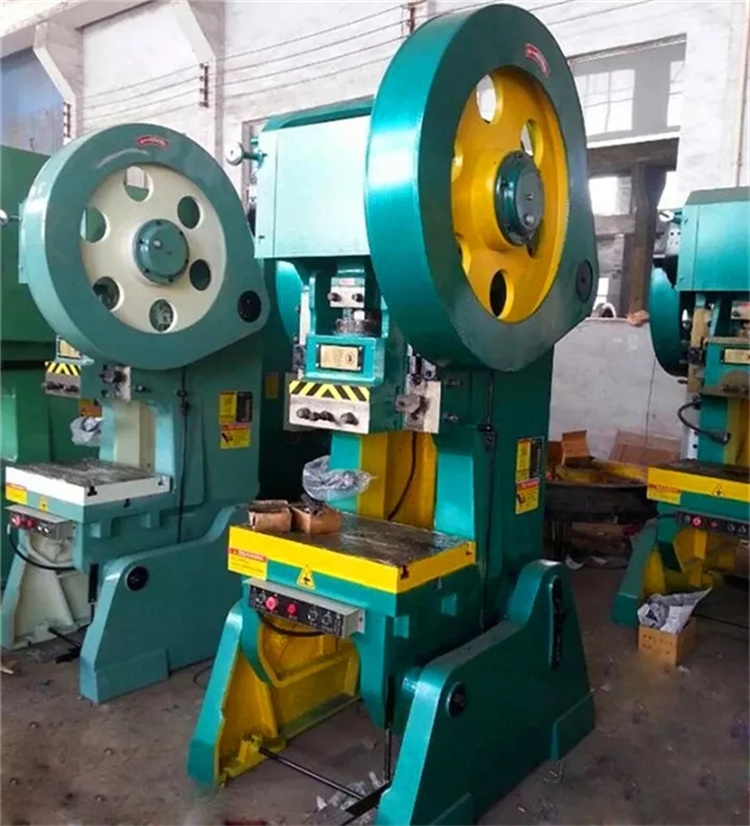

200 ton J23 c press mechanical punching machine

家 / 产品 / 200 ton J23 c press mechanical punching machine

特征

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

应用

规格

规格
Units
JB23-40
JB23-63
JB23-63A
公称压力
KN
400
630
630
Nominal force stroke
毫米
4
4
4
Slider stroke
毫米
80
80
80
Number of slider stroke
times/min
50
50
50
Maximum die set height
毫米
230
250
300
Die set height adjustment
毫米
45
50
50
Distance from slider center to frame
毫米
220
250
250
Worktable dimension
毫米
390x630
420x650
470x750
Thickness of the worktable panel
毫米
70
70
80
Size of the handle hole
(diameter x depth)
毫米
φ50x70
φ50x70
φ50x70
Vertical columns distance
毫米
330
320
390
Main motor
模型
Y112M-4
Y132S-4
Y132S-4
力量
千瓦
4
5.5
5.5
Maximum tilting angle of body
°
25
25
25
Overall dimension(LxWxH)
毫米
1600X1100X2250
1740X1100X2560
1740X1180X2560
重量
公斤
2960
3800
4300
